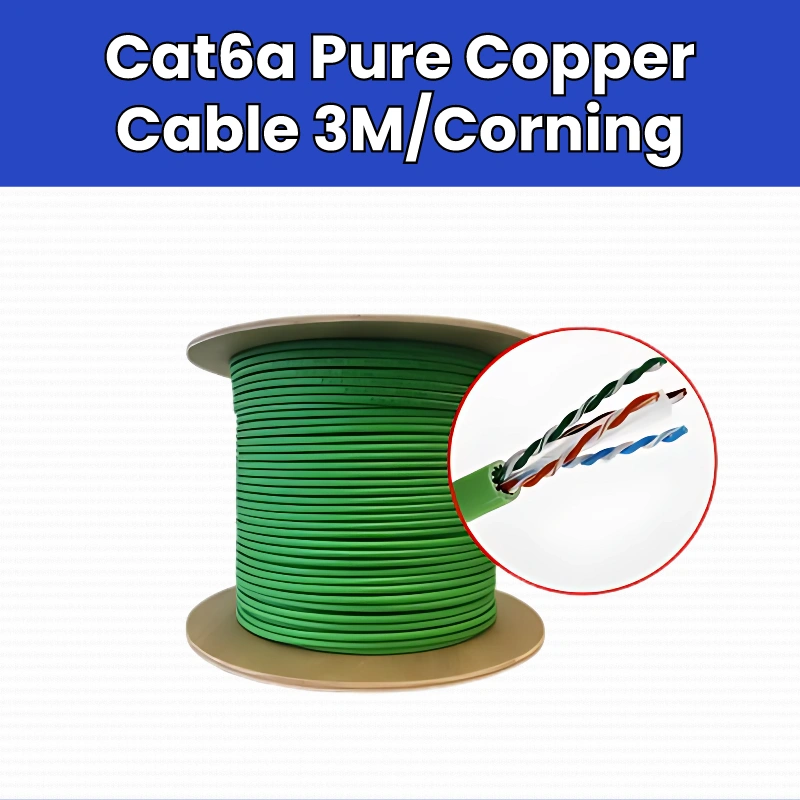

305M Cat6a UTP Pure Copper

305M Cat6a UTP Pure Copper

Features

• Aluminium/Polyester screen
• Length printed on the cable sheath
• LSOH sheath, IEC 60332-1 Category C2 type
• Round shape

Benefits

• Alien crosstalk immunity certified up to 500MHz
• Simplified Installation
• Complies with public building requirements
• Easy to connect our RJ45 OCK10S8

Cable construction

1- Conductor diameter: 24 AWG
2- Insulation: Low loss dielectric Pe
3- Cross separator: Especially designed to optimize the NEXT result.
4- Tape: synthetic. Guarantee the stability of the structure and the results after installation.
5- Shield: Alu/polyester. Ensure optimum ANEXT performance.
6- Drain wire: tinned copper. Used with a 9 point connector.
7- Sheath material: Low smoke emission material
